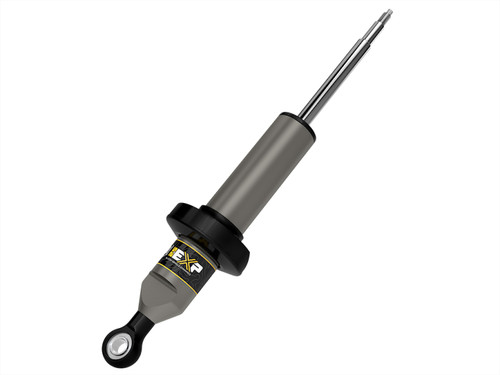

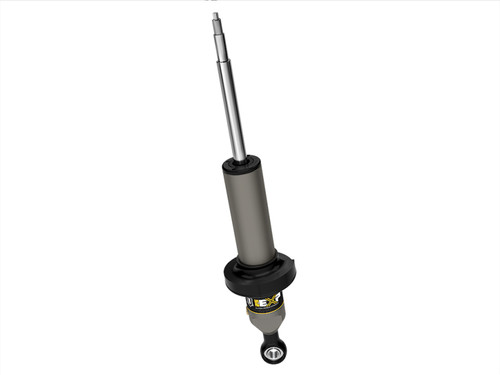

The 2022-2024 Toyota Tundra/2023-2024 Toyota Sequoia EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the truck’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. EXP Series is based on ICON’s proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Tundra’s OE upper shock and spring mounts. The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically designed to fit the vehicle’s OE coil spring. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0" to 3†of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra/Sequoia in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
This Part Fits:
| Year | Make | Model | Submodel |
|---|
| 2023-2024 | Toyota | Sequoia | Capstone |
| 2023-2024 | Toyota | Sequoia | Limited |
| 2023-2024 | Toyota | Sequoia | Platinum |
| 2023-2024 | Toyota | Sequoia | SR5 |
| 2022-2024 | Toyota | Tundra | 1794 Edition |
| 2022-2024 | Toyota | Tundra | Capstone |
| 2022-2024 | Toyota | Tundra | Limited |
| 2022-2024 | Toyota | Tundra | Platinum |
| 2022-2024 | Toyota | Tundra | SR |
| 2022-2024 | Toyota | Tundra | SR5 |
